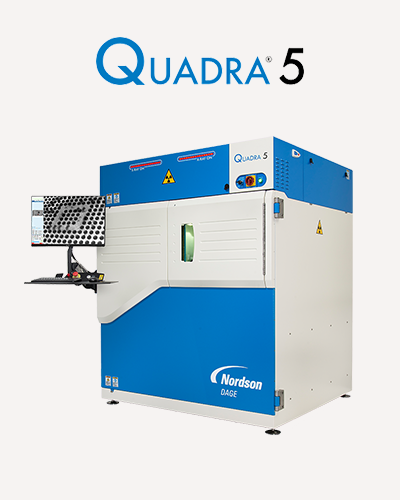

QUADRA 5
X-RAY SYSTEM
Flexible X-ray inspection down to 0.35um feature size
더 많은 것을 위한 더 높은 출력
고급 서브 µm 감지 기능
“높은 정확도의 보이드 측정, 완제품에 대한 전력 검사 수행”

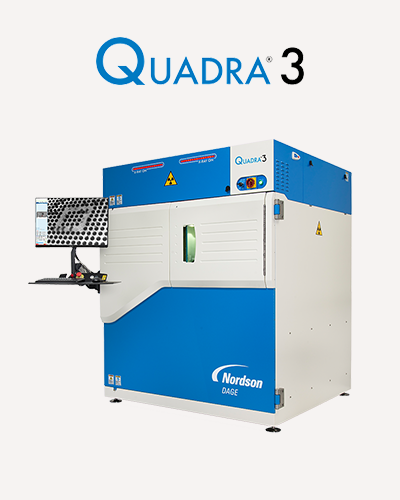

| COMPARISON of QUADRA 3 and QUADRA 5 | QUADRA 3 | QUADRA 5 |
| X-RAY Tube | QuadraNT™ filament free transmissive | |
| Feature recognition | 0.95 ㎛ | 0.35 ㎛ |
| Tube target power | 10 W | 10 W (20 W optional) |
| Voltage | 30 ~ 160 ㎸ | |
| Detector | AspireFP™ Flat Panel Detector | |
| Resolution | 1.4 MP | 3 MP |
| Frame rate | 10 fps | 25 fps |
| Digital image processing | 16 bit | |
| Inspection | ||
| Operation | Mouse point and click (joysticks optional) | |
| Oblique angle view | 2 x 70º – No sample rotation required | |
| Inspection area | 510 x 445 mm (20 x 17.5″) | |
| Anti-vibration | Passive | AXIS – Active X-RAY Image Stabilization |
| Geometric magnification | Up to x 2,000 | Up to x 2,500 |
| Total magnification | Up to x 7,500 | Up to x 45,000 |
| Display | Single 24″ WUXGA 1920 x 1200 | Single 24″ WUXGA 1920 x 1200 |
| Installation | ||
| Footprint (W x D x H) | 1.57 x 1.50 x 1.90 m | |
| Weight | 1,950 ㎏ | |
| Power | Single phase 200-230 Vac, 50/60 ㎐, 16A | |
| X-RAY safety | ＜ 1 μSv / hour | |
| Air | 5-8 bar clean dry for anti-vibration | |
