QUADRA 7
X-RAY SYSTEM
The complete X-ray inspection solution
궁극의 화질과 확대, 0.1µm의 작은 품질 결함
“근본 원인 고장 분석에 이상적으로 작용하여 와이어 본드, 구성요소 균열, MEMS 검사, 웨이퍼 TSV 및 웨어퍼 범프 무결성 검사에 탁월합니다.”

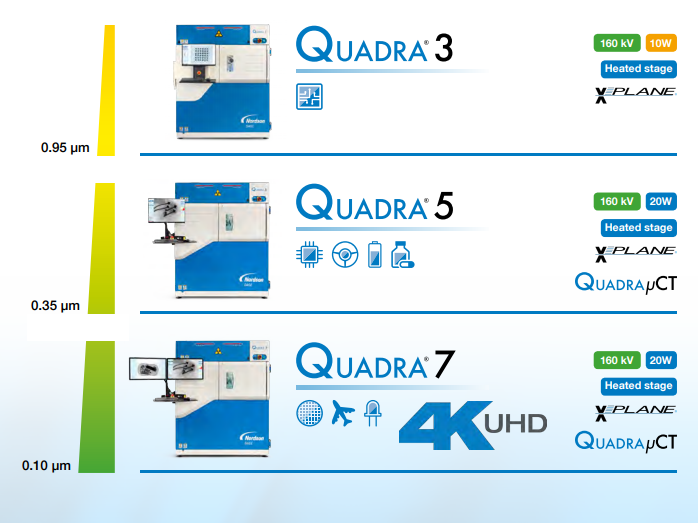

| COMPARISON of QUADRA 5 and QUADRA 7 | QUADRA 5 | QUADRA 7 |
| X-RAY Tube | QuadraNT™ filament free transmissive | |
| Feature recognition | 0.35 ㎛ | 0.10 ㎛ |
| Tube target power | 10 W (20 W optional) | 20 W |
| Voltage | 30 ~ 160 ㎸ | |
| Detector | AspireFP™ Flat Panel Detector | |
| Resolution | 3 MP | 6.7 MP |
| Frame rate | 25 fps | 30 fps |
| Digital image processing | 16 bit | |
| Inspection | ||
| Operation | Mouse point and click (joysticks optional) | |
| Oblique angle view | 2 x 70º – No sample rotation required | |
| Inspection area | 510 x 445 mm (20 x 17.5″) | |
| Anti-vibration | AXIS – Active X-RAY Image Stabilization | |
| Geometric magnification | Up to x 2,500 | |
| Total magnification | Up to x 45,000 | Up to x 68,000 |
| Display | Single 24″ WUXGA 1920 x 1200 | Twin 24″ 4K UHD 3840 x 2160 |
| Installation | ||
| Footprint (W x D x H) | 1.57 x 1.50 x 1.90 m | |
| Weight | 1,950 ㎏ | |
| Power | Single phase 200-230 Vac, 50/60 ㎐, 16A | |
| X-RAY safety | ＜ 1 μSv / hour | |
| Air | 5-8 bar clean dry for anti-vibration | |
